Brand New Socket Support Spring For Karl Storz TC300 Processor

Brand New Socket Support Spring For Karl Storz TC300 Processor

► Brief Description

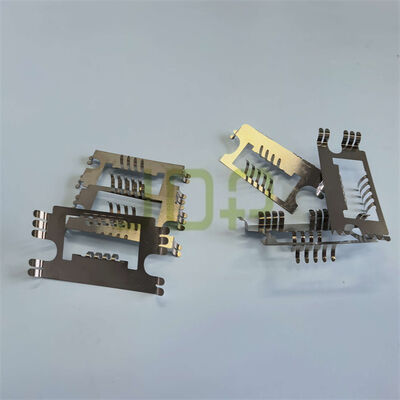

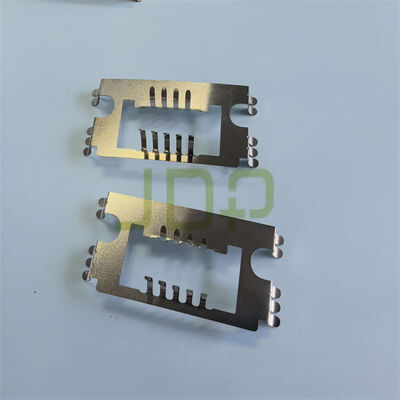

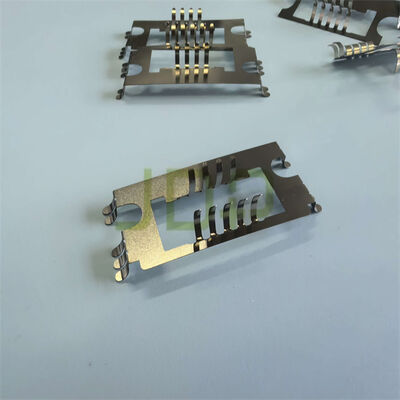

The Karl Storz TC300 series represents advanced modular camera control and link modules (such as the IMAGE1 S H3-Link / X-Link units) utilized in modern endoscopic video systems. Within these control modules, the socket support spring (also known as the connector retention clip or contact spring) is a high-precision internal mechanical element built into the camera head input receptacle. It guarantees a secure physical lock and uninterrupted electrical communication between the endoscopic camera head cable and the TC300 processing unit.

►Features

• Mechanical Locking and Retention: Applies consistent radial pressure against the inserted camera plug, preventing accidental dislodgement or signal interruption during active surgical procedures.

• Electrical and Signal Integrity: Maintains tight, low-resistance physical contact across all internal pins, securing zero-latency transmission of high-definition or advanced digital imaging data to the TC300 processor.

• Grounding and Shielding: Acts as a conductive grounding bridge to shield delicate video signals from external electromagnetic interference (EMI), protecting the display from artifacts or noise.

​

► Specification

► FAQ


What are the typical signs that these spring leaves need to be replaced?


A: Common warning signs include:

• Frequent loose connection or intermittent signal loss when the plug is fully inserted

• Noticeable reduced resistance when inserting the plug into the socket

• Visible deformation, rust or fatigue fracture on the surface of the spring leaf after disassembly

► More service

Spare parts for Karl Storz camera head, such as CCD, cable, cover, sheath/strain relief, etc.
Camera system brand by OLYMPUS, WOLF, STORZ, Stryker, Smith&Nephew, ScanMed, etc.

Main models of camera head:
5502, 5506, 5507, 5509, 5512, 5516, 5525, 5550, etc by Wolf;
OTV-S4, OTV-S5, OTV-SX2, OTV-SC, OTV-S6, OTV-S7, CV-165, etc by Olympus;
22201020, 20242020, 22202022, 20212020, etc by Storz Image 1 HUB HD;
888i, 988i, 1088/1088HD, 1188/1188HD, 1288/1288HD, 1488/1488HD, 1588/1588HD, 1688/1688HD, etc by Stryker;
460P, 560P, ED-3, 325Z, 350, etc by Smith&Nephew.
