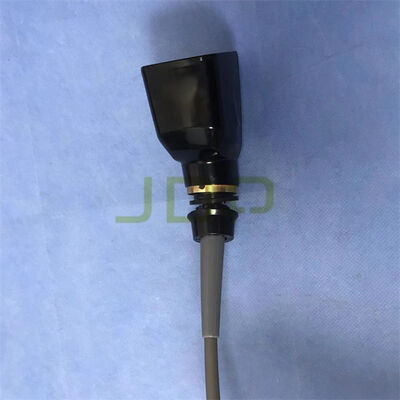

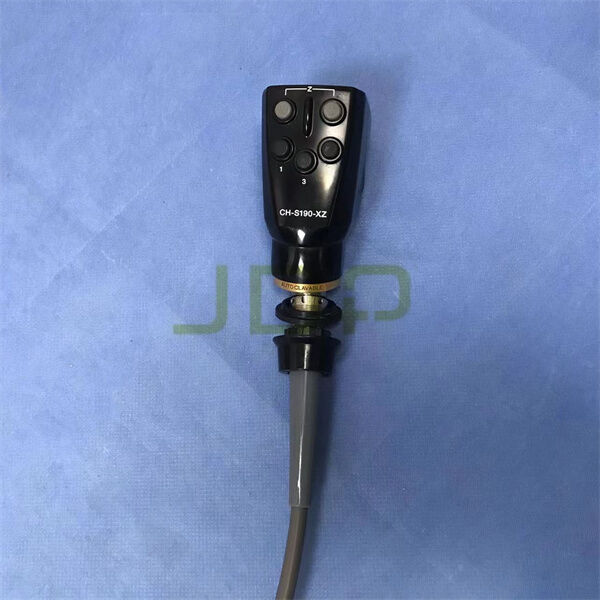

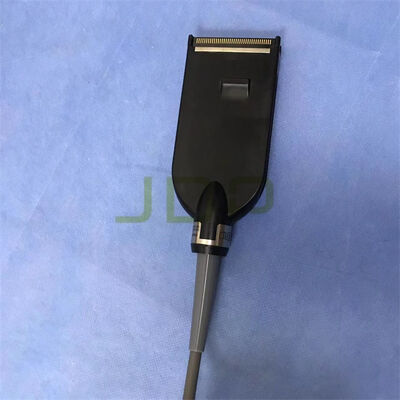

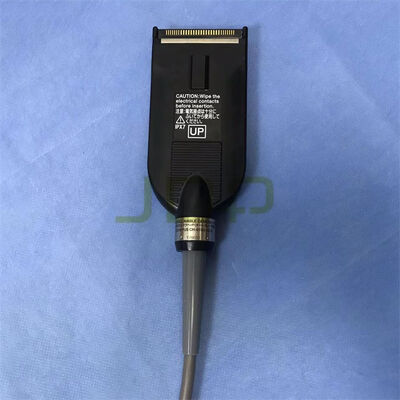

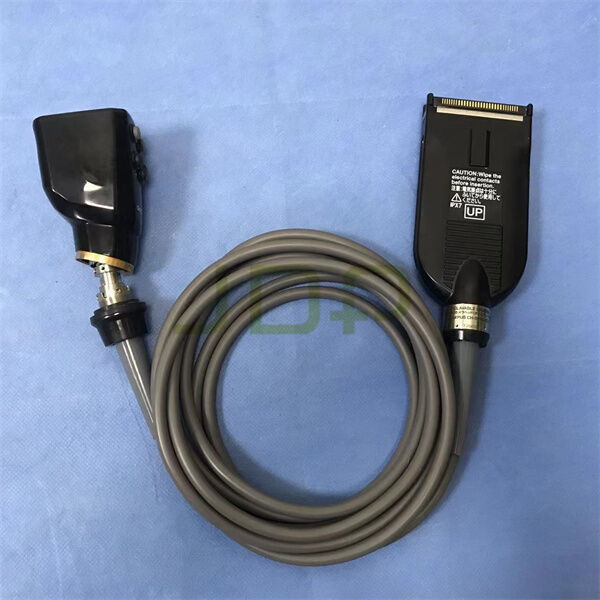

Camera Cable Assembly For Olympus CH-S190-XZ Video Camera Head

Camera Cable Assembly For Olympus CH-S190-XZ Video Camera Head



► Brief Description
The Camera Cable Assembly for the Olympus VISERA ELITE CH-S190-XZ is a highly specialized, medical-grade multi-core umbilical cable.
Because the CH-S190-XZ is an advanced Full HD 3CCD surgical camera head equipped with motorized Power Zoom and Power Focus micro-engines, its cable is engineered to handle massive data throughput and complex power distribution simultaneously, all while enduring the harsh environments of surgical sterilization.


►Features

• High-Definition Signal Integrity
• Motorized Control Distribution
• Hermetic Thermal & Fluid Isolation
• Ergonomic Flexibility & Torque Resistance



► Specification





► FAQ


What are the most common symptoms of a failing camera cable?

A: Because the cable experiences constant twisting and pulling during surgery, standard signs of wear include:

• Intermittent Video Feed: The image cuts out, freezes, or flickers when you jiggle or flex the cable near the camera head or the processor plug.

• Color Distortion: The image suddenly changes tint (e.g., turns completely magenta, green, or blue), which indicates that one of the internal micro-coaxial RGB lines has severed.

• Processor Error Codes: The OTV-S190 or OTV-S300 display screen shows an "E302" (Camera head communication error) or "Scope Disconnected" alert.

What are the best practices for storing and handling the cable?

A: To maximize the lifespan of the cable:

• Do not over-bend: Never tightly coil or knot the cable. Coil it loosely in large loops (usually greater than 10-15 cm in diameter).

• Disconnect safely: Always pull from the robust metal connector housing rather than pulling directly on the flexible cord when unplugging.

• Storage: Store in a clean, dry, and stress-free environment, preferably on a designated handpiece rest or tray.



► More service
Spare parts for Wolf camera head, such as CCD, cable, cover, sheath/strain relief, etc.
Camera system brand by OLYMPUS, WOLF, STORZ, Stryker, Smith&Nephew, ScanMed, etc.

Main models of camera head:
5502, 5506, 5507, 5509, 5512, 5516, 5525, 5550, etc by Wolf;
OTV-S4, OTV-S5, OTV-SX2, OTV-SC, OTV-S6, OTV-S7, CV-165, etc by Olympus;
22201020, 20242020, 22202022, 20212020, etc by Storz Image 1 HUB HD;
888i, 988i, 1088/1088HD, 1188/1188HD, 1288/1288HD, 1488/1488HD, 1588/1588HD, 1688/1688HD, etc by Stryker;
460P, 560P, ED-3, 325Z, 350, etc by Smith&Nephew.


► About Us
JDP is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.

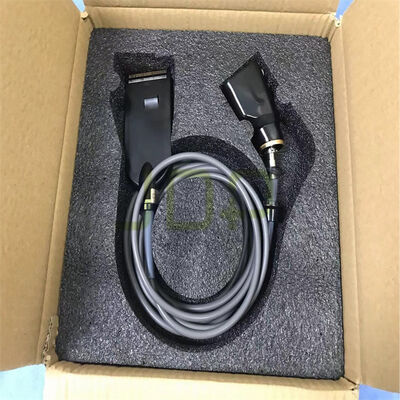

Shipping and packing
