CCD Driver Board For Olympus CF-H170L Video Colonoscope

CCD Driver Board For Olympus CF-H170L Video Colonoscope

► Brief Description

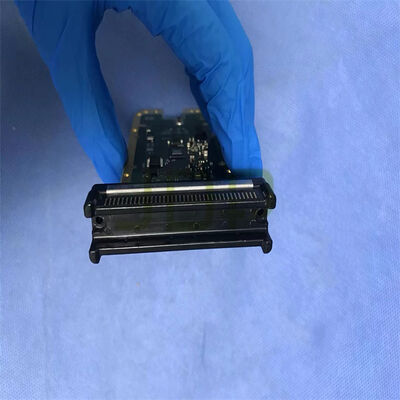

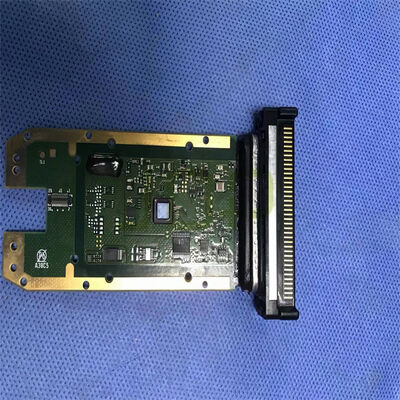

The CCD Driver Board for the Olympus CF-H170L is a specialized electronic sub-assembly utilized in the repair and maintenance of the Olympus CF-H170L High-Definition (HDTV) video colonoscope. Situated within the endoscope's electronic architecture, this board acts as the critical bridge between the distal tip image sensor and the external video processing system, ensuring high-fidelity image capture and transmission during diagnostic and therapeutic lower gastrointestinal procedures.

► Features

• Sensor Timing and Clocking: Generates and supplies precise timing signals and clock pulses required to operate the miniature Charge-Coupled Device (CCD) image sensor at the tip of the scope.

• Signal Pre-Amplification & Conditioning: Receives weak analog image signals from the CCD sensor, applying initial amplification and analog filtering to minimize electrical noise.

• Data Routing: Converts and transmits video data securely through the internal wiring harness down to the video processor system (such as the Olympus Optera platform).

• Imaging Mode Support: Coordinates with the processor to support advanced visualization features native to the 170-series, including HDTV output and NBI (Narrow Band Imaging) for enhanced mucosal and vascular pattern differentiation.

► Specification

►FAQ

When does the coil pipe assembly need to be replaced?

Replacement is typically necessary during major endoscope overhauls if the scope exhibits:

• Kinking or crushing along the insertion tube.

• Loss of smooth articulation or stiffness issues caused by internal coil deformation.

• Fraying or damage to the channels/wires housed inside, often identified during routine leak testing or repair maintenance.
