Product Details:
Payment & Shipping Terms:
|
| Brand: | Olympus | Model: | GIF-H190 |
|---|---|---|---|
| Series: | Insertion Tube | Condition: | Brand New |
| Insertion Tube Outer Diameter (OD): | 9.2mm | Working Length: | 1030mm |
| Instrument/Biopsy Channel Inner Diameter (ID): | 2.8mm | Angulation Range(Right/Left): | 100°/100° |
| Angulation Range(Up/Down): | 210°/90° | MOQ: | 1 Piece |
| Package: | Carton / Standard Export Packing | Transportation: | DHL, FedEx, UPS, Etc. |
| In Stock: | Yes | Price: | Accept Negotiation |

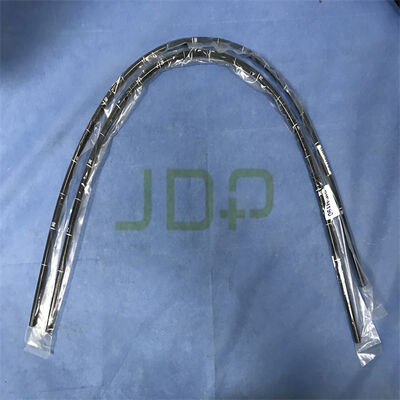

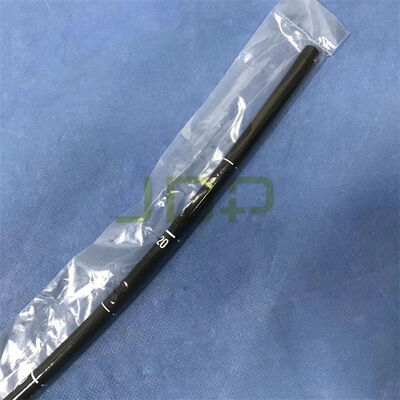

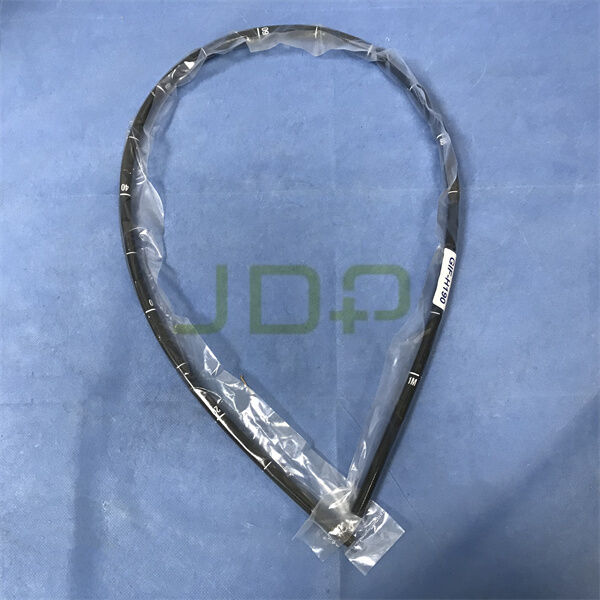

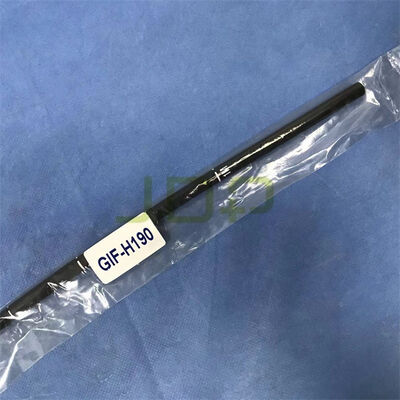

Insertion Tube For Olympus GIF-H190 Video Gastroscope
► Brief Description
The Olympus GIF-H190 is a high-definition (HD) video gastroscope part of the EVIS EXERA III series. The insertion tube is engineered to balance structural flexibility, patient comfort, and advanced therapeutic capability for upper gastrointestinal (GI) procedures.
► Features
Slim Profile and Advanced Maneuverability: The 9.2 mm slim outer diameter facilitates smoother insertion through the upper digestive tract, reducing patient discomfort while maintaining exceptional optical performance.
Integrated Water Jet System: The insertion tube features a built-in water jet channel that allows clinicians to flush away mucus, blood, or debris directly during procedures. This ensures an uninterrupted, clear field of view—particularly critical during hemostasis and complex therapeutic interventions.
High-Definition Imaging & NBI Integration: Housing high-resolution optics and supporting Narrow Band Imaging (NBI), the insertion tube delivers high-contrast visualization of capillary patterns and mucosal structures to assist in early lesion detection.
Optimal Flexibility and Pushability: Designed with a variable flexibility gradient along the insertion section, it provides a balance between stiffness (for smooth pushability down the esophagus and stomach) and flexibility (to smoothly navigate complex anatomical curves).
► Specification
| Brand | Olympus |
| Model | GIF-H190 |
| Series | Insertion Tube |
| Condition | Brand new |
| Insertion Tube Outer Diameter (OD) | 9.2mm |
| Working Length | 1030mm |
| Instrument/Biopsy Channel Inner Diameter (ID) | 2.8mm |
| Angulation Range(Right/Left) | 100°/100° |
| Angulation Range(Up/Down) | 210°/90° |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
►FAQ
A: Common indicators of insertion tube wear or failure include:
Kinks, dents, or deep cuts along the outer polymer coating, which can compromise the waterproof seal.
Positive leak test results, indicating that bodily fluids or cleaning chemicals have breached the exterior sheath.
Protruding internal coils or exposed wiring, creating a safety hazard for both the patient and the equipment.
Stiffness or loss of flexibility in specific sections of the tube.
► More service
Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
► About Us
JDP is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
