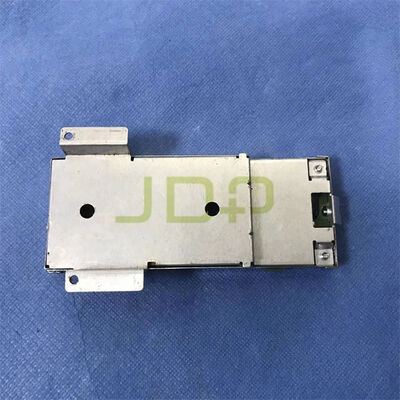

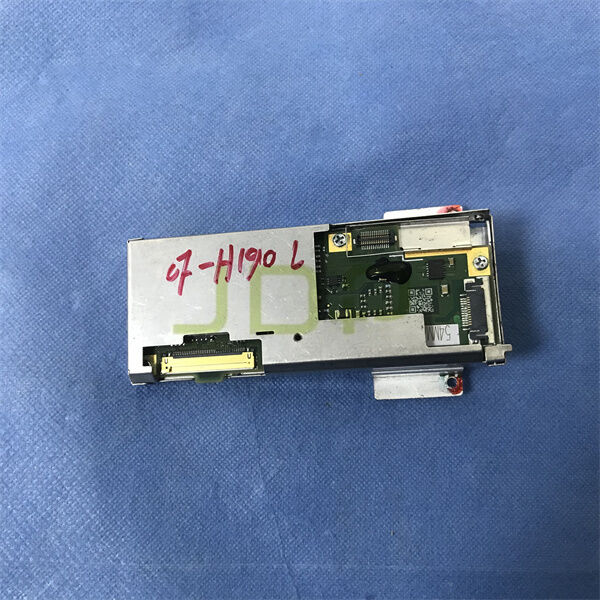

CCD Driver Board For Olympus CF-H190L Colonovideoscope

CCD Driver Board For Olympus CF-H190L Colonovideoscope

► Brief Description

The CCD Driver Board for the Olympus EVIS EXERA III CF-H190L colonovideoscope is a high-precision electronic component located within the endoscope system. It is engineered to process, drive, and manage the high-definition (HDTV) video signals captured at the distal tip of the colonoscope.


► Features

• Signal Amplification and Drive: Converts optical images captured by the distal lens into clean electrical signals, driving them reliably through the long insertion tube without signal degradation.
• HD Image Processing Support:Minimizes signal noise, halation, and distortion to ensure true-to-life color reproduction and high clarity required for precise gastrointestinal diagnosis.
• Narrow Band Imaging (NBI) Integration: Works seamlessly with the processor to support enhanced NBI technology, providing high-contrast visualization of mucosal microvasculature and capillary patterns.
• Communication Interface:Relays scope-ID and synchronization data between the distal sensor and the main CV-190 video processor.

► Specification

► FAQ

What are the common symptoms that indicate a faulty CCD board or harness in a CF-H190L?

Common symptoms include:

• Complete image loss (black screen)

• Flickering, rolling, or unstable video feed

• Intermittent signal drops when bending or articulating the insertion tube

• Horizontal or vertical lines, noise, or artifact interference on the monitor

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.

► About Us

JDP is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.

Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
