CCD Driver Board For Olympus GIF-HQ190 Gastroscope

CCD Driver Board For Olympus GIF-HQ190 Gastroscope



► Brief Description

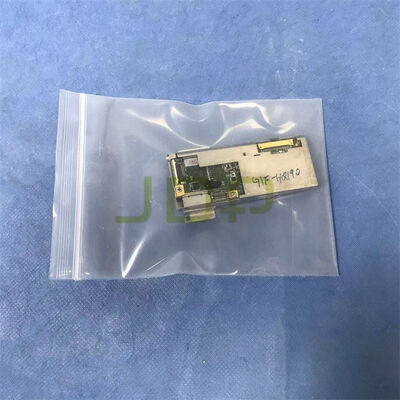

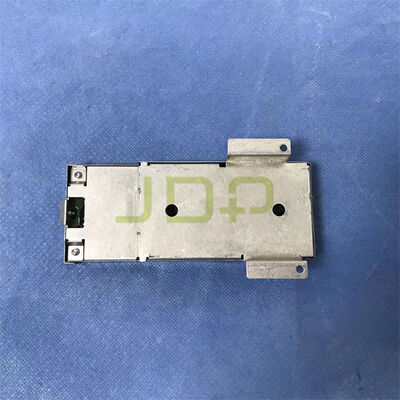

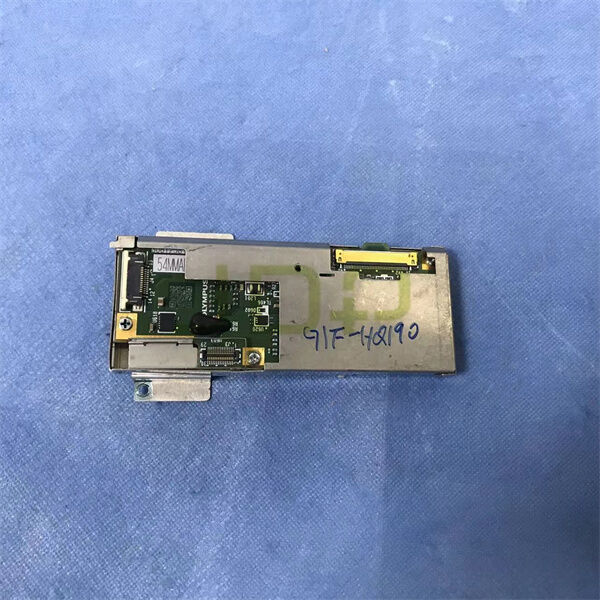

The CCD Driver Board is a crucial electronic component of the Olympus GIF-HQ190 video gastroscope. It serves as the bridge between the microscopic Charge-Coupled Device (CCD) image sensor at the tip of the scope and the main video processor system (Olympus CV-190 / CLV-190).
This board manages power distribution, sensor timing signals, and high-frequency analog-to-digital signal conversion. It enables high-definition (HDTV) live video streaming, Narrow Band Imaging (NBI), and the dual-stage optical focus system.


► Features


• CCD Sensor Timing & Driving
• Dual-Focus System Integration
• Signal Conditioning & Noise Reduction
• Color & NBI Enhancement Transmission
• Scope Calibration Data Storage



► Specification





► FAQ

What are the common symptoms of a failing CCD driver board on the GIF-HQ190?

Common indicators of a damaged or faulty CCD driver board include:

• Video Interference: Snow, vertical lines, color banding, or intermittent black screens when moving the scope.
• Processor Errors: Communication error codes (such as E315 or E316) on the CV-190 video processor.
• Dual-Focus Malfunction: Inability to switch to or maintain focus in Near Mode (2–6 mm).
• Discolored NBI: Incorrect color tinting or dark patches when toggling Narrow Band Imaging (NBI).

What causes the CCD driver board on a gastroscope to fail?

• Fluid Ingress: Micro-cracks in the distal tip's bending section or seal degradation can allow water/enzymatic cleaner to penetrate during reprocesssing, causing short circuits.

• Physical Shock/Impact: Drops or severe impacts to the scope tip can crack the delicate ceramic flex circuit or surface-mount components.

• Cable Strain: Repeated twisting and excessive bending during procedures can fracture internal ribbon wiring connected to the board.


► More service
Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
