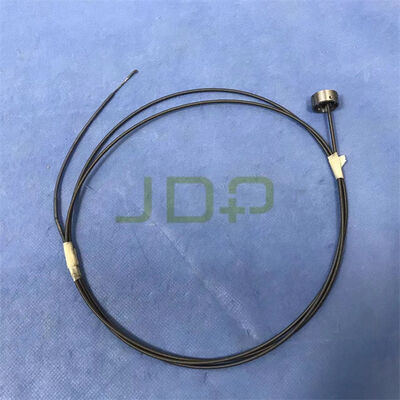

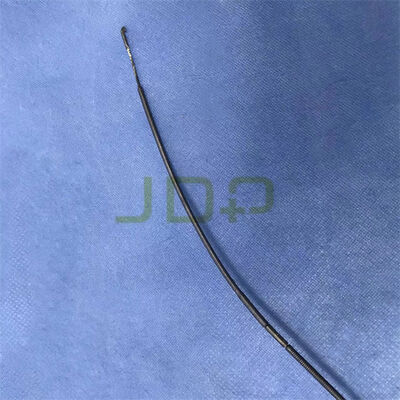

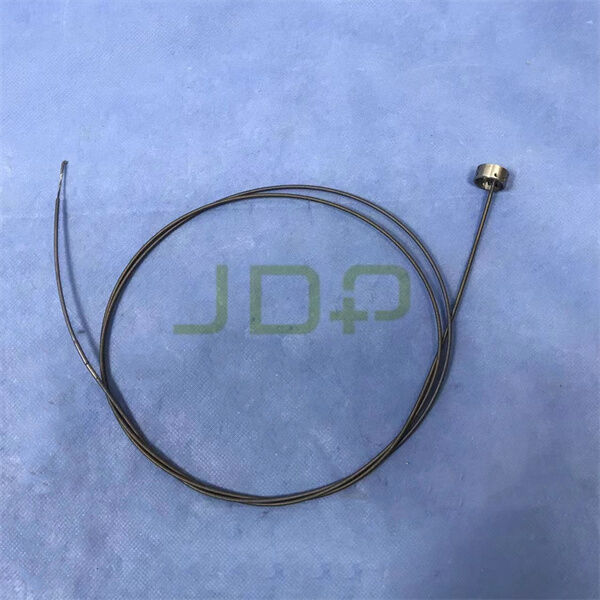

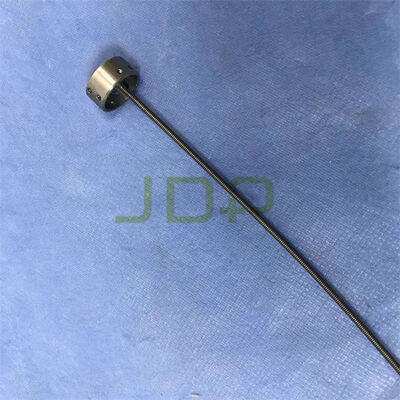

Variable Stiffness Coil Assembly For Olympus CF-H190L Colonoscope

Variable Stiffness Coil Assembly For Olympus CF-H190L Colonoscope

►Brief Description

The Variable Stiffness Wire/Coil is a core mechanical element of Olympus’s proprietary RIT (Responsive Insertion Technology) found in the CF-H190L colonoscope.

Unlike gastroscopes, colonoscopes navigate acute loops in the large intestine. This internal steel wire and coil assembly allows the endoscopist to adjust the rigidity of the insertion tube in real-time, helping to prevent loop formation and minimize patient discomfort.

►Features

• Variable Stiffness Adjustment:When the physician turns the adjustment ring on the endoscope's control section, it pulls or releases the internal stiffness wire. Tensioning the wire compresses the surrounding outer coil, causing the insertion tube to shift from highly flexible to rigid.
• Loop Prevention:During colonoscopy advancement (especially through the sigmoid colon), increasing the stiffness helps transfer the pushing force directly to the distal tip, preventing the endoscope from looping or bowing inside the patient.
• High Force Transmission (HFT):Working in tandem with the wire tension, it ensures that twisting or torque applied by the physician's hand is accurately translated down the insertion tube.

►Specification

►FAQ

What are the primary clinical signs that the stiffness wire has broken?

A: If the internal steel wire breaks or snaps, you will typically notice:

• No change in rigidity: Turning the adjustment ring from 0 to 3 yields absolutely no change in the flexibility of the endoscope.

• Loss of tactile resistance: The adjustment ring on the control head may feel completely loose or turn with zero resistance.

• Sudden looping: The endoscope loops much more easily in the sigmoid colon than usual, despite dial adjustments.

Why does the adjustment ring feel stuck or very stiff to turn?

A: This is usually caused by a kinked stiffness wire or corrosion inside the endoscope. If the endoscope suffers a minor fluid invasion that goes unnoticed, the internal stainless steel components can rust and bind together. Alternatively, if the insertion tube was severely bent or crushed during a procedure or reprocessing, the wire inside may have kinked, preventing it from sliding smoothly through the outer coil.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.

► About Us

JDP is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.

Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
