Connector Plug Unit For Olympus GIF-H290 Gastroscope

Connector Plug Unit For Olympus GIF-H290 Gastroscope

► Brief Description

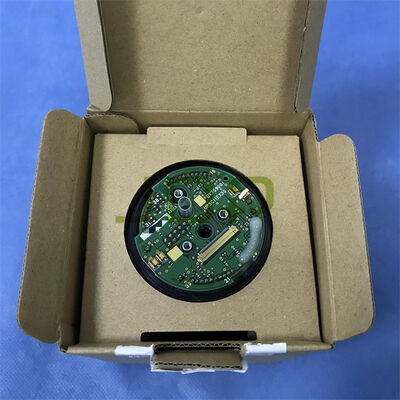

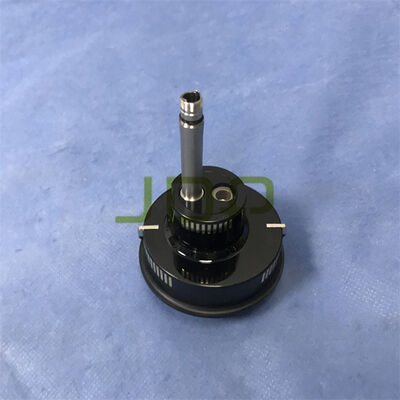

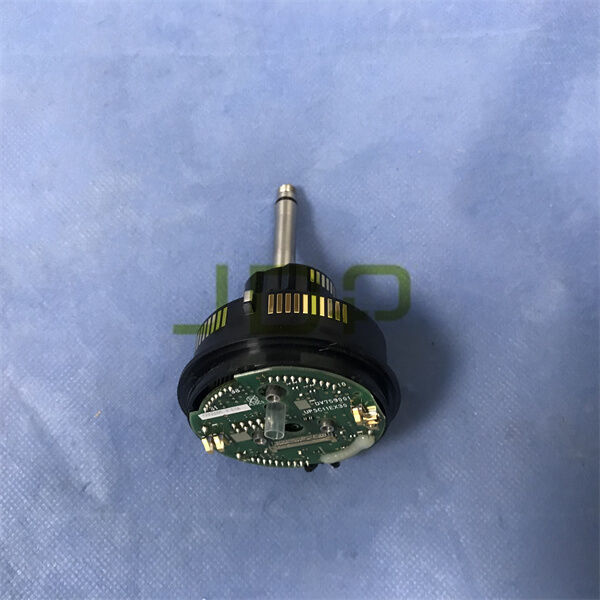

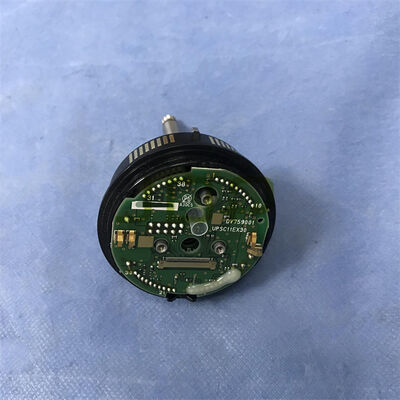

The Connector Plug Unit (often referred to as the Electrical Connector Plug Unit or Endoscope Hub) is a vital structural and electrical component located at the proximal end of the Olympus GIF-H290 gastrointestinal endoscope.
As part of Olympus's 290 series design, it features a Waterproof One-touch Connector system. This generation completely eliminates the need for a separate water-resistant cap during cleaning and reprocessing, minimizing the risks of accidental liquid immersion and costly fluid-invasion repairs.


► Features

• One-Touch Electrical & Optical Coupling

• Integrated Light Guide Transmission

• Cap-less Waterproof Sealing

• Signal Shielding and Grounding

►Specification

►FAQ


What are the most common signs of a failing Connector Plug Unit?

A:If the connector plug unit is damaged or wearing out, you may experience:

• Video issues: Image flickering, color distortion, lines across the screen, or a total loss of video ("Scope Disconnected" error on the monitor).

• Remote switch failure: The buttons on the scope control head stop responding.

• Physical wear: Cracked plastic on the prong face, loose light-guide pins, or worn/torn external rubber O-rings

How do I know if the connector plug unit has suffered fluid invasion?

A: Fluid invasion usually happens if the internal seals fail or if the scope is dropped, causing a hairline crack in the plug housing. Signs include:

• Heavy corrosion or green/dark residue on the external gold electrical contacts.

• A failed leak test (pressure drop) during routine pre-cleaning checkups.

• Erratic electrical behavior that only happens after the scope has been submerged or put through an Automated Endoscope Reprocessor (AER).
