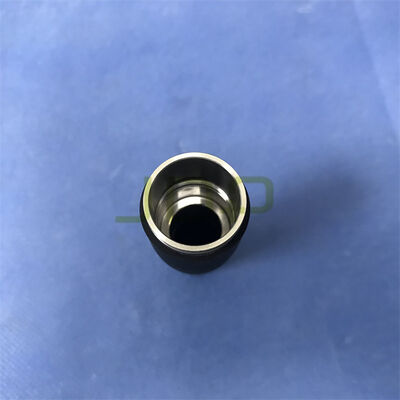

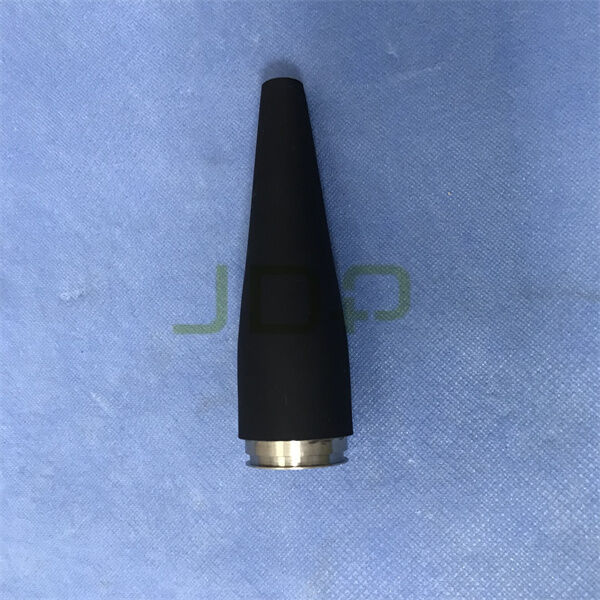

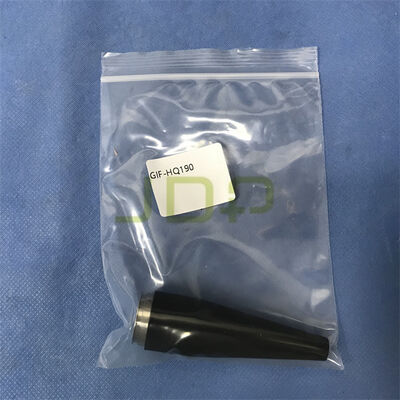

Insertion Tube Boot For Olympus GIF-HQ190 Gastroscope

Insertion Tube Boot For Olympus GIF-HQ190 Gastroscope

► Brief Description

The Insertion Tube Boot for GIF-HQ190 is a premium, medical-grade elastomeric component specifically designed for the Olympus GIF-HQ190 video gastroscope. Located at the critical junction where the flexible insertion tube meets the control handle), this boot acts as a robust strain relief mechanism. It is engineered to withstand the rigorous demands of endoscopy and repeated high-level disinfection (HLD) cycles, making it an essential replacement part for professional endoscope repair and maintenance.

► Features

• Strain Relief & Kink Prevention: It provides a graduated, flexible transition that absorbs mechanical stress, preventing the insertion tube from bending at sharp angles and kinking during deep gastrointestinal advancement.
• Hermetic Sealing & Fluid Barrier: When properly sealed with medical-grade adhesive, it forms a completely waterproof barrier that prevents patient fluids, water, and chemical disinfectants from infiltrating the internal cavities of the scope.
• Internal Core Protection: Protects fragile internal components—such as the CCD/CMOS video cables, fiber optic light bundles, and air/water channels—from being crushed or worn down by external friction.

► Specification

► FAQ

What are the common signs that the boot needs to be replaced?

A: You should inspect the boot daily. It must be replaced immediately if you notice any of the following:

• Visible Cracks or Tears: Any splitting in the rubber/silicone material.

• Material Degradation: The boot feels sticky, brittle, or excessively soft/gummy due to chemical exposure.

• Separation: The boot is peeling away or loosening from the insertion tube or the control section.

• Failed Leak Test: If bubbles originate from the boot area during a fluid leak test, the seal has compromised.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
