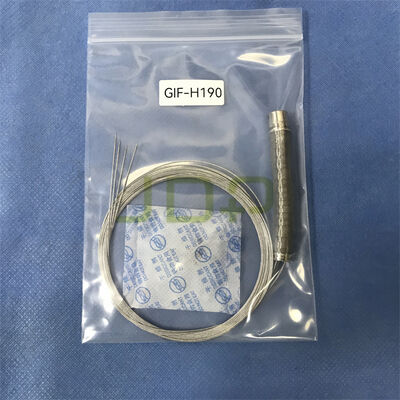

Bending Section Assembly For Olympus GIF-H190 Gastroscope

Bending Section Assembly For Olympus GIF-H190 Gastroscope



► Brief Description

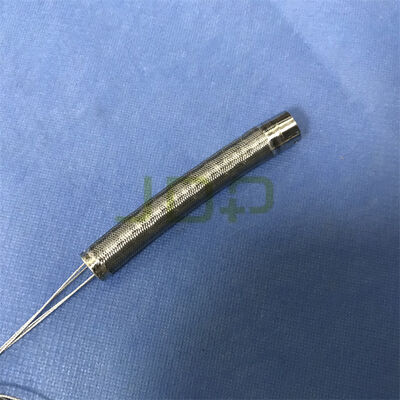

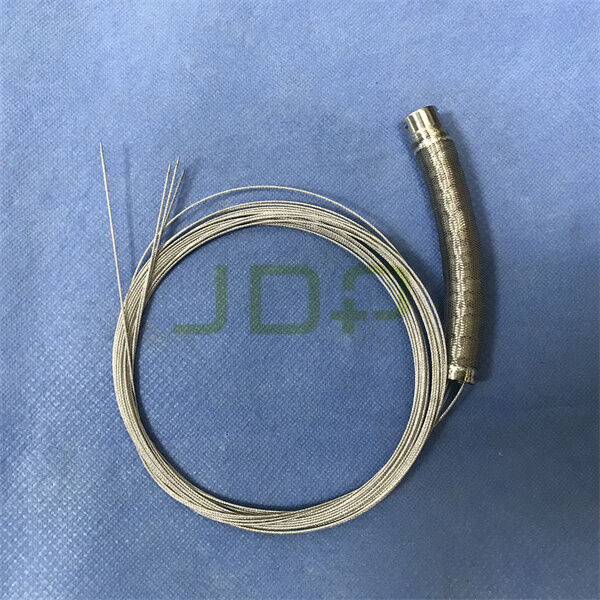

The Bending Section Assembly is a critical, high-precision component located at the distal end of the Olympus GIF-H190 EVIS EXERA III video gastroscope. It provides the flexibility and structural integrity required for the endoscope to navigate the complex curves of the upper gastrointestinal tract.Constructed from a series of interconnected metal rings (segments) covered by a durable mesh, this assembly allows smooth, controlled angulation driven by the endoscope's control knobs.



► Features

• Four-Way Angulation Control: It translates the mechanical pull of the steering cables from the control handle into precise Up/Down/Left/Right movements, allowing the endoscopist to steer around sharp anatomical turns (like the duodenum).
• Retroflexion Capability: With an impressive upward angulation of 210°, it enables the "U-turn" maneuver (retroflexion) required to inspect the gastric cardia and fundus thoroughly.
• Internal Channel Protection: It acts as a protective conduit for delicate internal components—such as the Light Guide bundles, CCD/CMOS video cables, water/air channels, and the instrument (biopsy) channel—preventing them from kinking or breaking during tight bends.
• Hermetic Sealing (Waterproofing): When properly sealed with its outer rubber sheath, it prevents fluid invasion (biomedical waste, water, or chemical disinfectants) into the inner workings of the endoscope, preventing costly fluid damage.




► Specification






► FAQ


What are the most common signs of a damaged bending section?

A: You should inspect or service the assembly if you notice any of the following symptoms:

• Reduced Angulation: The scope cannot reach its maximum Up/Down or Left/Right angles.

• Play or Slack in the Knobs: The control knobs feel loose before the bending section actually moves.

• Sticky or Heavy Operation: Turning the angulation knobs requires excessive force.

• Physical Deformation: Wrinkling, swelling, pinholes, or tears in the bending rubber/sleeve.

• Failed Leak Test: Air bubbles escaping from the bending rubber section during a wet leak test.




► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
