Bending Section Assembly For Olympus GIF-XP190N Gastroscope

Bending Section Assembly For Olympus GIF-XP190N Gastroscope

► Brief Description

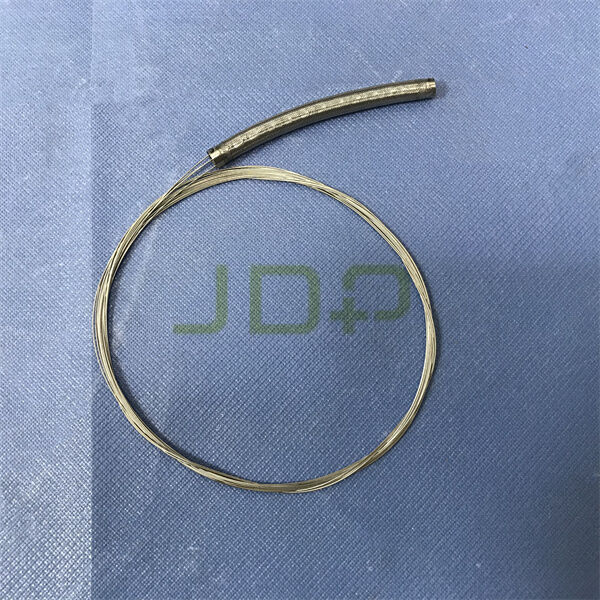

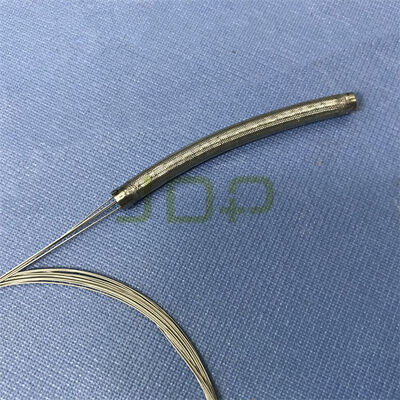

The Bending Section Assembly is a critical, highly precise mechanical component located at the distal end of the Olympus GIF-XP190N ultra-slim gastroduodenoscope. It consists of a series of interconnected metal segments (bending rings) covered by a flexible mesh. This assembly provides the controlled flexibility required to navigate the complex and narrow anatomy of the upper gastrointestinal tract, especially during transnasal or pediatric endoscopy.


► Features

• Multi-Directional Angulation (Four-Way Deflection)

• Micro-Diameter Structural Support

• Flexibility and Torque Transmission

• Environmental Sealing and Biocompatibility

► Specification

► FAQ


Why is the bending section of the GIF-XP190N more delicate than standard gastroscopes?

The GIF-XP190N features an ultra-slim distal end diameter of just 5.4mm. To pack a 2.2mmbiopsy channel, light guides, air/water tubes, and the video chip into such a tiny space, the internal bending rings and wire guides have to be incredibly thin. This miniaturization makes the assembly less forgiving of accidental drops, over-angulation, or rough handling during insertion.


What causes the bending section to become stiff or lock up completely?

This is usually caused by one of three things:

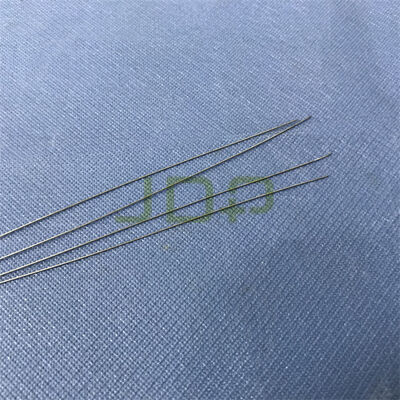

1. Internal Wire Snagging: The angulation wires have frayed or snapped inside the coil pipes.

2. Chemical Corrosion: Fluid invasion (due to a microscopic leak) has caused the internal metal segments to rust and seize up.

3. Severe Impact: The scope tip was dropped or hit against a hard surface, bending the mechanical rings out of alignment.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.


► About Us
JDP is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing

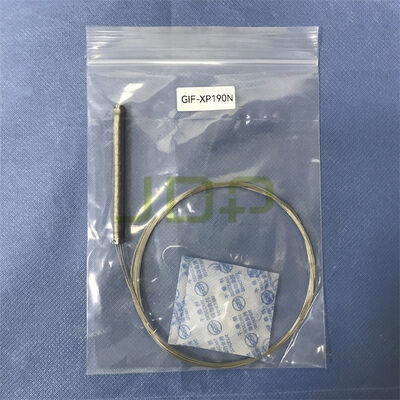

All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
