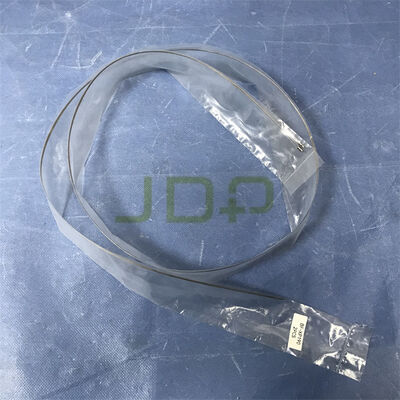

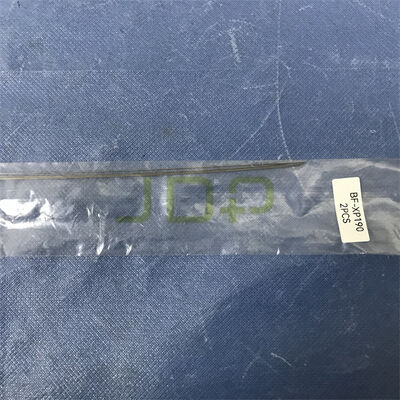

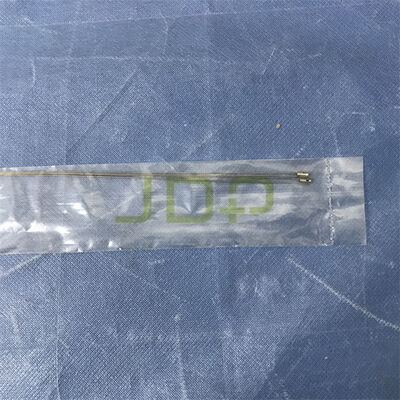

Bending Section Coil Pipe Assembly For Olympus BF-XP190 Ultra-Slim Video Bronchoscope

Bending Section Coil Pipe Assembly For Olympus BF-XP190

► Brief Description

The Bending Section Coil Pipe Assembly for the Olympus EVIS EXERA III BF-XP190 Ultra-Slim Video Bronchoscope is a highly specialized internal component. It serves as a critical part of the endoscope's articulation mechanism, ensuring smooth, precise, and controlled movement of the distal tip during bronchoscopy procedures.

► Features

• Compression Resistance & Stabilization: When the physician rotates the control knobs to angle the scope tip, the coil pipes absorb the compressive forces. This allows the internal pull wires to glide smoothly without causing the insertion tube to collapse, kink, or twist.

• Precise Articulation Support: It ensures the distal tip can accurately achieve its maximum high-performance angulation (210° Up / 130° Down), which is crucial for navigating difficult bronchopulmonary anatomy like the peripheral bronchi.

• Internal Component Protection: It isolates the moving angulation wires from other delicate internal structures—such as the ultra-slim 1.2 mm biopsy channel, the CCD video cable, and the fiber-optic light guides—preventing internal friction, wear, and structural damage.

• Flexibility Retention: It maintains structural integrity and elasticity through thousands of bending cycles, ensuring the bronchoscope does not become "spongy" or lose its tactile feedback over time.

► Specification

► FAQ

What are the symptoms of a worn-out or damaged coil pipe assembly?

If the coil pipe assembly is stretched, crushed, or corroded, you will typically observe the following issues:

• Loss of maximum angulation: The scope can no longer achieve its standard 210° Up or 130° Down deflection.

• "Spongy" or loose control knobs: A lack of crisp tactile feedback or excessive play when turning the knobs.

• Stiff or binding articulation: The angulation mechanism feels rough, heavy, or gets stuck mid-turn.

• Internal wire snapping: Increased friction caused by a collapsed coil pipe can cause the angulation wires to fray and break prematurely.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
