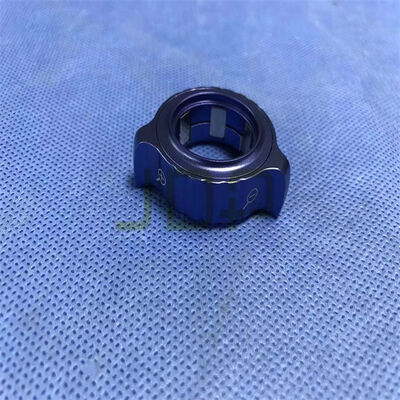

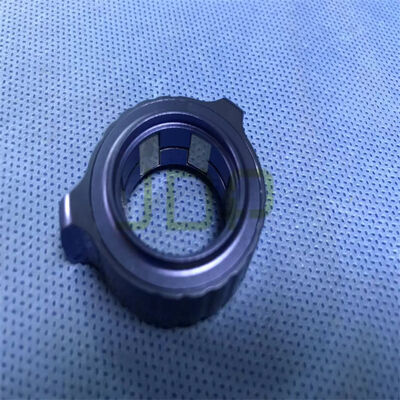

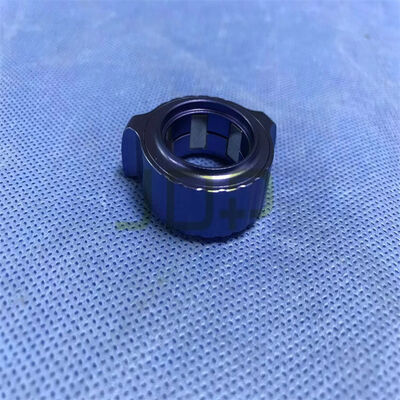

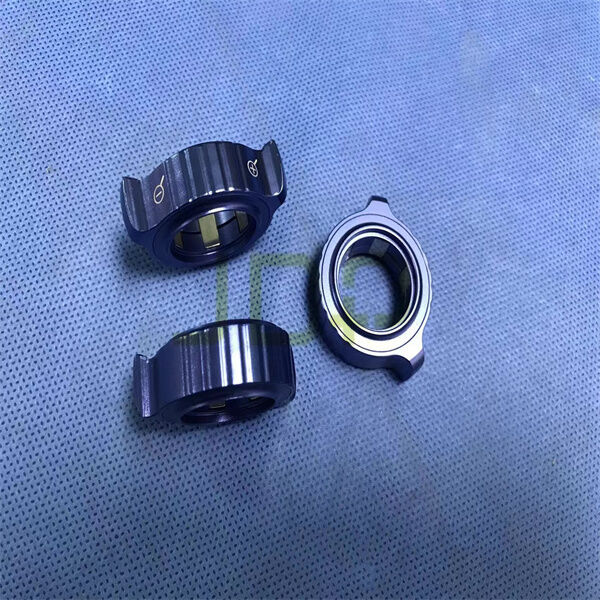

Focusing Ring For Karl Storz IMAGE1 H3-Z Camera Head

Focusing Ring For Karl Storz IMAGE1 H3-Z Camera Head

► Brief Description

The focusing ring is a precision mechanical component integrated into the Karl Storz IMAGE1 HD / IMAGE1 S H3-Z camera head (such as model variant TH100). Designed for medical endoscopes, this ring allows surgical teams to manually adjust and fine-tune image sharpness and optical clarity directly from the sterile field during minimally invasive surgeries and diagnostic procedures.

►Features

• Manual Focus Control: Enables the user to adjust the focal plane dynamically, ensuring that anatomical structures, tissue textures, and surgical instruments remain sharp and clear on the monitor.
• Ergonomic Tactile Design: Features a textured outer grip engineered for effortless handling and precise fingertip control, even when wearing double surgical gloves.
• Optical Integration: Works cooperatively alongside the focal length adjuster (zoom ring) and programmable remote control buttons located on the H3-Z camera body to offer complete visual management.
• Backlash-Free Precision: Maintains steady internal alignment with the internal lens/prism assembly to eliminate image jitter during adjustments.

► Specification

► FAQ



What should I do if the image remains blurry even after turning the focusing ring?

• A: If adjusting the focusing ring does not clear up the image, check for the following common causes:

  • Tip Soiling / Condensation: Inspect the distal end of the endoscope or the camera coupler window for blood, residue, or fogging. Clean or defog accordingly.

  • Coupler Connection: Ensure the endoscope is fully inserted and securely locked into the camera coupler.

  • Working Distance: Verify that the endoscope tip is at an appropriate focal distance from the target tissue.

► More service

Spare parts for Wolf camera head, such as CCD, cable, cover, sheath/strain relief, etc.
Camera system brand by OLYMPUS, WOLF, STORZ, Stryker, Smith&Nephew, ScanMed, etc.

Main models of camera head:
5502, 5506, 5507, 5509, 5512, 5516, 5525, 5550, etc by Wolf;
OTV-S4, OTV-S5, OTV-SX2, OTV-SC, OTV-S6, OTV-S7, CV-165, etc by Olympus;
22201020, 20242020, 22202022, 20212020, etc by Storz Image 1 HUB HD;
888i, 988i, 1088/1088HD, 1188/1188HD, 1288/1288HD, 1488/1488HD, 1588/1588HD, 1688/1688HD, etc by Stryker;
460P, 560P, ED-3, 325Z, 350, etc by Smith&Nephew.
