CCD Driver Board For Olympus GIF-H190 Video Gastroscope

CCD Driver Board For Olympus GIF-H190 Video Gastroscope

► Brief Description

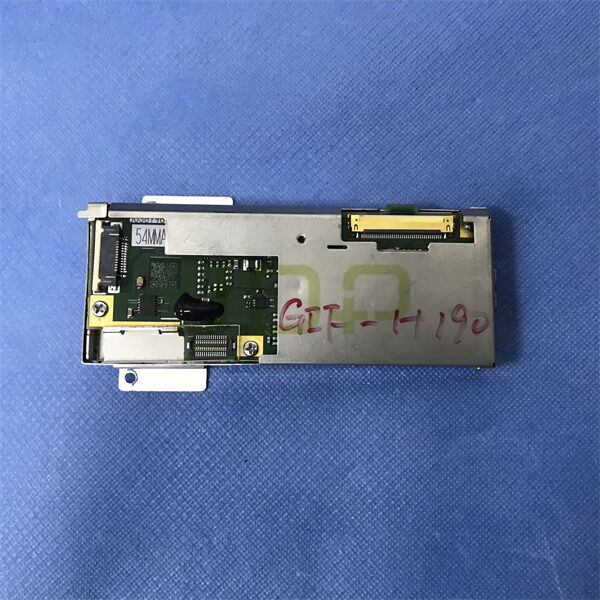

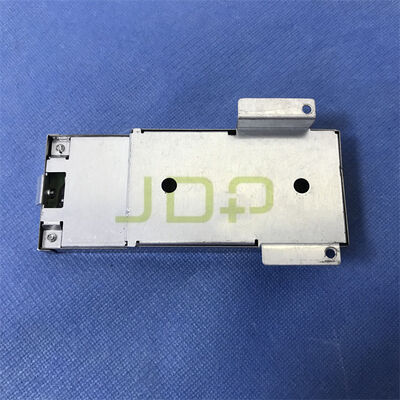

The CCD Driver Board for the Olympus EVIS EXERA III GIF-H190 video gastroscope is a critical hardware component responsible for powering, timing, and processing signals for the distal-end image sensor.

► Features

• Clock Pulse Generation: Generates precise timing signals (vertical/horizontal shift clocks and reset pulses) required to drive the microscopic CCD image sensor.

• Signal Amplification: Receives raw, weak analog image signals captured from the gastroscope's tip and pre-amplifies them before transmitting them to the main video processor.

• Noise Reduction: Minimizes electrical interference and thermal noise to ensure crisp, clear, high-definition medical imagery during gastrointestinal diagnostics.

• NBI & Illumination Synchronization: Coordinates frame timing to support advanced optical technologies like Olympus Narrow Band Imaging (NBI) for enhanced vascular and mucosal pattern visualization.

• Power Management: Regulates and distributes stable operating voltages to the miniature distal image sensor safely within medical safety standards.

► Specification

►FAQ

What are the primary signs that indicate a faulty CCD or driver board in the GIF-H190 scope?

A: Common symptoms include:

• No Image / Black Screen: Complete loss of video signal while the light source is functioning properly.

• Image Artifacts & Noise: Horizontal or vertical lines, flickering pixels, grainy visuals, or color distortion on the monitor.

• Communication Errors: Error codes displayed on the EVIS EXERA III video processor (like OTV-S190) pointing toward scope communication or scope ID failure.
