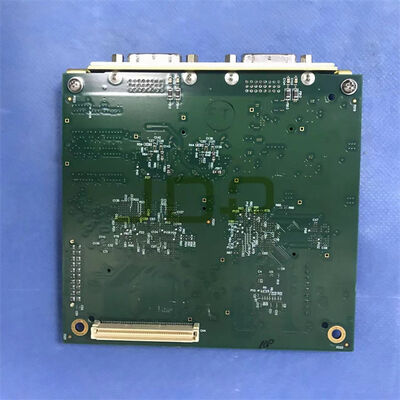

Main Board For STORZ 22201020 IMAGE1 HUB HD Processor

Main Board For STORZ 22201020 IMAGE1 HUB HD Processor

► Brief Description

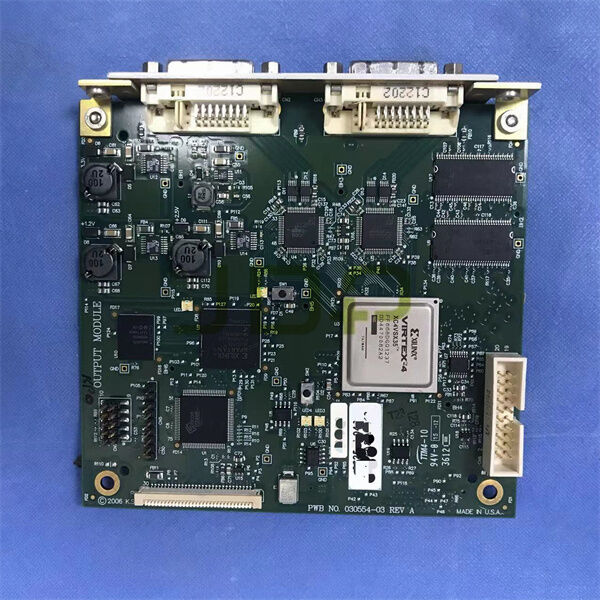

The main board for the Karl Storz 22201020 serves as the central processing unit inside the IMAGE1 HUB HD Camera Control Unit (CCU). As the core printed circuit board (PCB) of the console, it is responsible for managing high-definition image processing, signal conversion, system communication, and input/output control during endoscopic, laparoscopic, and arthroscopic procedures.

►Features

• High-Definition Video Processing
• Signal Conversion & Routing
• System Integration (SCB Control)
• Data & Media Management

► Specification

► FAQ



What are the common symptoms of a faulty main board in a STORZ 22201020 console?

• Answer: Common indicators of a failing or damaged main board include:

  • Complete failure to power on or frequent unexpected reboots.

  • No video output or abnormal display artifacts (e.g., green screens, scrambling, vertical/horizontal lines).

  • Inability to recognize connected camera heads (e.g., H3-Z series) or external peripherals.

  • Error codes or freezing during the initialization/boot-up sequence.

  • Failure to save user settings or communicate via the SCB network.

What causes the main board in the 22201020 CCU to fail?

• Answer: Primary causes include:

  • Power surges or electrical fluctuations.

  • Normal component aging (such as degradation of electrolytic capacitors or SMD components).

  • Liquid ingress or internal contamination (dust, debris, or moisture from hospital environments).

  • Electrostatic discharge (ESD) during improper handling or maintenance.

► More service

Spare parts for Wolf camera head, such as CCD, cable, cover, sheath/strain relief, etc.
Camera system brand by OLYMPUS, WOLF, STORZ, Stryker, Smith&Nephew, ScanMed, etc.

Main models of camera head:
5502, 5506, 5507, 5509, 5512, 5516, 5525, 5550, etc by Wolf;
OTV-S4, OTV-S5, OTV-SX2, OTV-SC, OTV-S6, OTV-S7, CV-165, etc by Olympus;
22201020, 20242020, 22202022, 20212020, etc by Storz Image 1 HUB HD;
888i, 988i, 1088/1088HD, 1188/1188HD, 1288/1288HD, 1488/1488HD, 1588/1588HD, 1688/1688HD, etc by Stryker;
460P, 560P, ED-3, 325Z, 350, etc by Smith&Nephew.

► About Us

JDP is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.

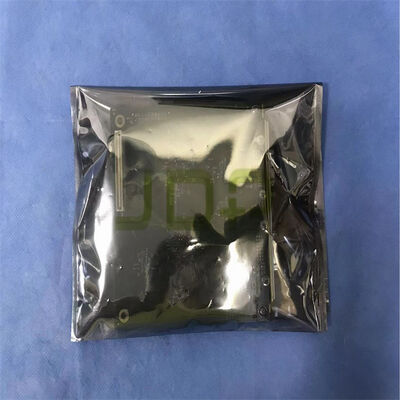

Shipping and packing
