Product Details:
Payment & Shipping Terms:
|
| Brand: | Olympus | Model: | CF-H290L |
|---|---|---|---|
| Series: | Bending Section Assembly | Material: | Stainless Steel |
| Up: | 210° | Down: | 130° |
| Distal End Outer Diameter: | 4.2 Mm | Working Channel Diameter: | 2.0 Mm |
| MOQ: | 1 Piece | Package: | Carton / Standard Export Packing |
| Transportation: | DHL, FedEx, UPS, Etc. | In Stock: | Yes |
| Price: | Accept Negotiation |

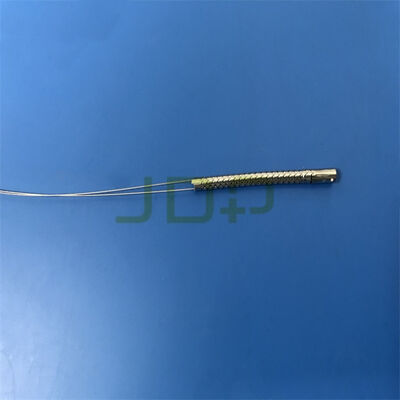

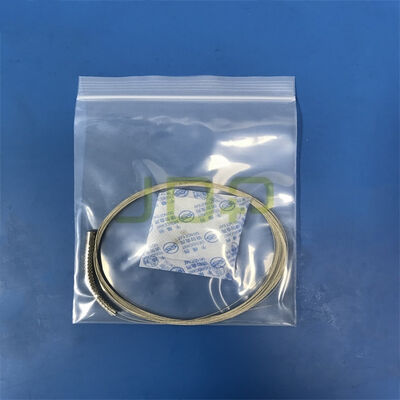

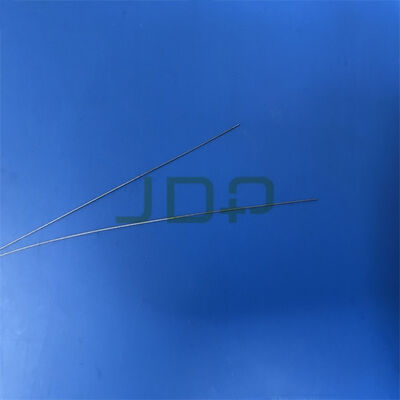

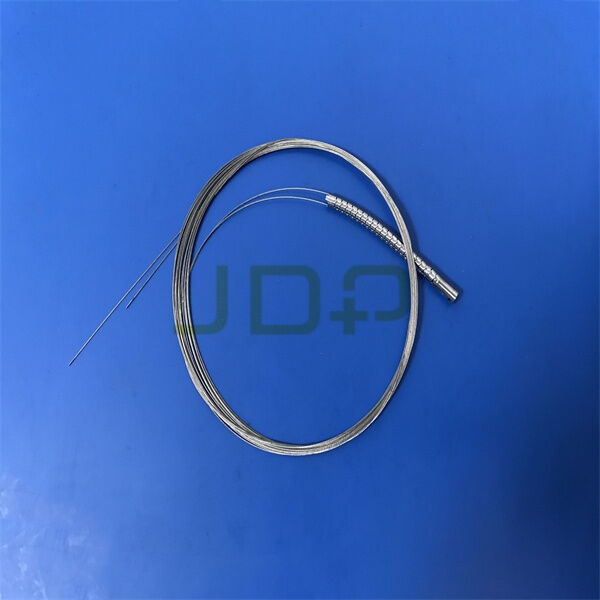

Bending Section Assembly for Olympus BF-P290 Video Bronchoscope
► Brief Description
The Bending Section Assembly for the Olympus BF-P290 Bronchoscope is integral to the scope's maneuverability, especially in reaching peripheral areas of the lung.
► Features
Steering and Articulation Converts the rotation of the angulation knobs (on the control body) into Up and Down movement of the distal tip.
Enhanced Maneuverability Facilitates the exceptionally wide 210°Up and 130° down angulation range.
Protection and SealingThe assembly's mesh and surrounding bending rubber protect the delicate internal components (CCD wiring, light guide fibers, and working channel) from internal and external damage.
Accessory Alignment Directs the exit and entry point of therapeutic and diagnostic instruments (passed through the 2.0 mm working channel) toward the area of interest at the end of the bend.
► Specification
| Brand | Olympus |
| Model | CF-H290L |
| Series | Bending Section Assembly |
| Material | Stainless steel |
| Up | 210° |
| Down | 130° |
| Distal End Outer Diameter | 4.2 mm |
| Working Channel Diameter | 2.0 mm |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
► More service
Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
► About Us
JDP is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
