Product Details:
Payment & Shipping Terms:
|
| Brand: | GE | Model: | 4C-RS |
|---|---|---|---|
| Condition: | Compatible & New | Series: | Array Element Crystal |
| Array Type: | Convex Array | Frequency Range: | 2.0 MHz – 5.0 MHz |
| Footprint: | 18 X 66 Mm | Radius Of Curvature: | 60 Mm |
| Number Of Elements: | 128 | MOQ: | 1 Piece |
| Package: | Carton / Standard Export Packing | Transportation: | DHL, FedEx, UPS, Etc. |
| In Stock: | Yes | Price: | Accept Negotiation |

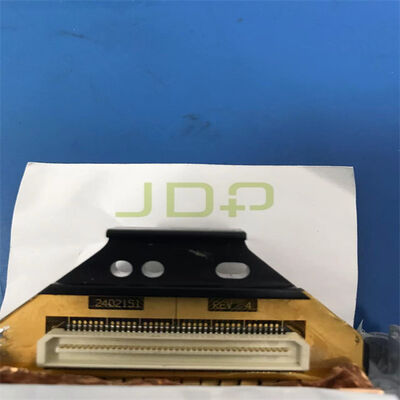

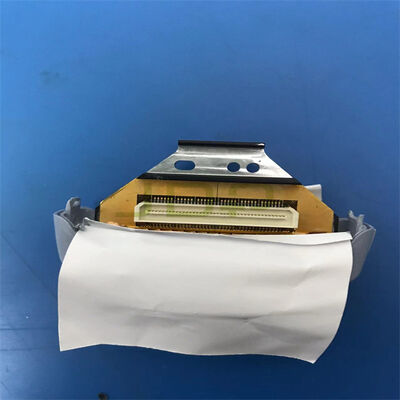

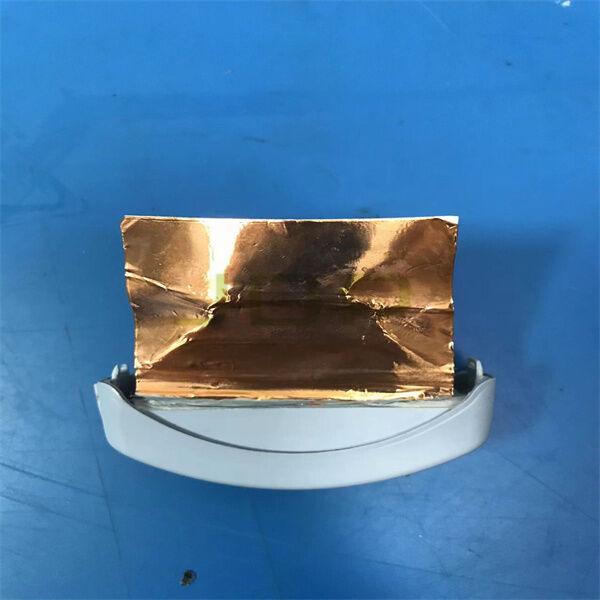

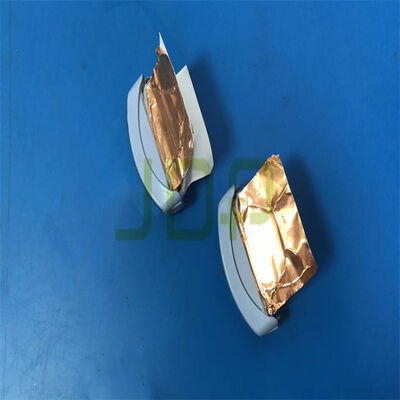

Array Element Crystal for GE 4C-RS Ultrasound Transducer
► Brief Description
The GE 4C-RS is a high-performance, wide-band convex array transducer. It is considered a "workhorse" probe for GE’s portable and console ultrasound systems (such as the LOGIQ, Vivid, and Voluson series), primarily used for deep-tissue imaging.
► Features
Broadband Frequency Range:Operating typically between 2.0 MHz and 5.0 MHz, it allows sonographers to switch to lower frequencies for deep penetration or higher frequencies for better superficial resolution.
Wide Field of View:The convex (curved) footprint provides a 58° field of view, allowing for a larger anatomical perspective in a single frame compared to linear probes.
Ergonomic "RS" Connector:Specifically designed with a compact "RS" connector for easy swapping between portable units and modern console systems.
► Specification
| Brand | GE |
| Model | 4C-RS |
| Condition | Compatible & new |
| Series | Array Element Crystal |
| Array Type | Convex Array |
| Frequency Range | 2.0 MHz – 5.0 MHz |
| Footprint | 18 x 66 mm |
| Radius of Curvature | 60 mm |
| Number of Elements | 128 |
| MOQ | 1 Piece |
| Package | Carton / Standard Export Packing |
| Transportation | DHL, FedEx, UPS, etc. |
| In Stock | Yes |
| Price | Accept Negotiation |
► More service
Ultrasound probe spare parts:
2D/3D/4D probe parts as below: Lens (dome), cable, housing (case), strain relief (cover), connector and crystal are provided
► About Us
JDP is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.
Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
